T-Type Electrical Quick Splice Connectors 0.5-1mm2 10A 5 pcs AMIO-02343

  • Obserwuj produkt:
  • Add feedback:
  • Code: 15162
  • pcs.
  • Net Price: €0.15 €0.18
  • Fast Blik payments.

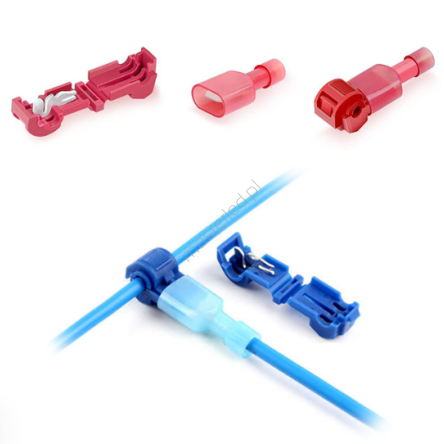

T-Type Electrical Quick Splice Connectors 0.5-1mm2 10A AMIO-02343

The T-type quick splice is an electrical connector designed for quick and safe connection of insulated wires.

Simply insert the insulated wires into the metal insert, snap the cover shut, and press with standard pliers; then, plug a connector into the splice to create a "branch" from the connection.

Once the connection is properly made, the wires are pressed into the metal connector to create a permanent joint, and an additional device can be connected to the terminal.

T-type branch connectors are products dedicated to low-voltage installations (12-24V), most commonly used in the automotive industry.

The connectors are used for quickly joining wires.

Technical specification:

- max 10A

- wire cross-section: 0.5 ÷ 1 mm²

- -50°C > +105°C

- PVC insulation

Installation:

- Insert both wires into the connector.

- Press the metal insert down using pliers.

- Snap the cover shut.

Note: Installation does not require stripping insulation from the wires.
