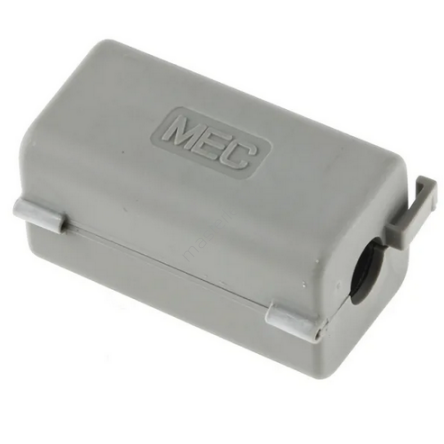

Essentra Snap-on ferrite sleeve, for EMI suppression 18 mm, Apertures: 1 16.6 mm, Diameter 6 mm

Obserwuj produkt:
Add feedback:

Code: 15165

Quantity:pcs.
Net Price: €1.87 €4.61 €2.30

Fast Blik payments.

Technical specifications :

Brand : Essentra

Series : MSFC

Product type : Ferrite sleeve

Subtype : Cable core

Application : EMI suppression

Material : A5

Impedance at 25 MHz : 113Ω

Keyed : No

Openable : Yes

Impedance at 100 MHz : 223Ω

Aperture diameter : 6mm

Number of apertures : 1

External width : 16.6mm

Angled : No

External height : 18mm

Standards/Approvals : No

Country of origin : Japan

Snap-Fixing Rectangular Cable Ferrite

From Richco, these snap-fixing ferrite cores are designed to be attached to cables to reduce electromagnetic interference from induction or radiation. The ferrite is housed in a Nylon 66 carrier, which simply snaps around the cable and is supplied with a cable tie that can be used to prevent the ferrite from sliding along the cable once secured to the integral mount.

Applications for Snap-Fixing Cable Ferrites:

• Rectangular ferrites are suitable for data cables, e.g., telephone or signal lines.
• Round ferrites are suitable for power cables, e.g., on copiers, printers, and other office equipment.

Split Ferrite Rings

These split ferrite cores reduce electromagnetic interference from induction or radiation from data and power cables. High attenuation ratings are achieved due to the housing design and special process steps during ferrite manufacturing. The special snap-lock makes the ferrite sleeve suitable for use with various cable diameters, and once the split ferrite is locked, it cannot be accidentally opened. The external housing is designed to protect the core halves from breaking and provides simple assembly on cables that are already installed or equipped with connectors. Attachment to the cable using adhesive or a cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering, and office machines.
