Front Multi-function Lamp 1334 P B

Obserwuj produkt:
Add feedback:

Code: 12274
Manufacturer: WAŚ

Quantity:pcs.
Net Price: €232.72 €286.24

Fast Blik payments.

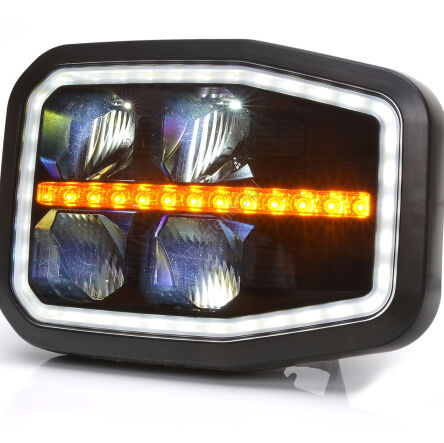

W188 horizontal front multi-function lamp, right (high beam, low beam, position light, turn signal, and DRL), short hinge

Part no.

Type

Cable

Mounting side

Operating voltage

Position

Front marker

Front turn signal

Side turn signal

High beam

Low beam

Daytime running light

Short hinge

1334 L A

W188

200cm YLY-S 6x0,75mm

right

12V-24V

The product has a current output in the form of a Deutsch connector

6-function lamp

W188 front multi-function lamps are fully LED lamps, featuring 6 types of lights: front position light, low beam, high beam, daytime running light, front turn signal in static (W188) or dynamic (W188DD) version, and additional side turn signal.
All W188 series lamps are adapted for operation in 12V and 24V installations.

High Ingress Protection Rating

W188 lamps have obtained E20 homologation, thus meeting all homologation requirements. They have been tested in an independent laboratory and demonstrated an IP6K9K protection rating, meaning they are completely resistant to dust ingress and high-pressure water jets.
Furthermore, the lamps are designed to operate in temperatures from -40°C to +50°C.

Lamp housing and power connector

The shape of the lamp housing and the high-grade aluminum used in production increase the amount of heat dissipated, thereby extending the lifespan of the LED diodes. Using aluminum instead of traditional steel also significantly reduced the weight of the entire lamp. Additionally, the entire housing has been two-layer protected against corrosion, allowing for long-term, trouble-free use. The lamp also uses a high-quality, reputable connector, which further protects against water ingress into the lamp's interior.

Special membrane

Completely sealing the lamp could have adverse effects during large temperature fluctuations and changing weather conditions. Therefore, maintaining proper air circulation is crucial for the correct functioning of all its components. For this purpose, W188 series lamps are equipped with a special membrane that, in addition to proper air circulation, simultaneously protects against moisture and water.

Versatile lamp positioning

Modern W188 series lamps are available in vertical and horizontal variants, and thanks to a special system of external brackets, they can be mounted both vertically and horizontally. The lamp's mounting method is a fork bracket with a swivel pin, available in 2 sizes designated in the lamp symbol as A (larger) or B (smaller). This allows for any desired lamp orientation, depending on user needs.

Highest quality materials

Individual components of W188 lamps are produced from the highest quality materials, including the lamp lens, which is made of durable polycarbonate, providing increased resistance to breakage and mechanical damage. Additionally, the lens itself is covered with a special reinforcing coating that protects it from scratches.
