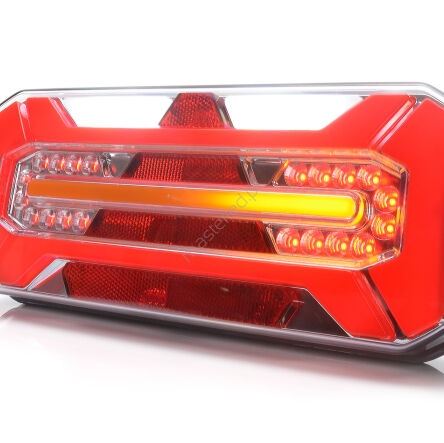

Rear LED Combination Lamp 1279 DD L

  • Obserwuj produkt:
  • Add feedback:
  • Code: 11542
  • Manufacturer: WAŚ
  • pcs.
  • Net Price: €67.44 €82.95
  • Fast Blik payments.

Lamp available with connectors: TYCO, Schlemmer, WAŚ 7-pin and with a 12V or 24V load resistor



The new series of W184DD LED rear combination lamps with dynamic turn signal features an innovative design and distinctive appearance. The LED modules for the position, turn, and reverse lights are made of a special material thanks to which individual light points are not visible, only the shape of the light with a pleasant-to-the-eye glow with a neon effect. The lamp lens and housing are made of high-quality material, resistant to scratches, temperature factors, and UV radiation. Additionally, the lamp has electromagnetic compatibility approval and is characterized by easy installation on the vehicle.

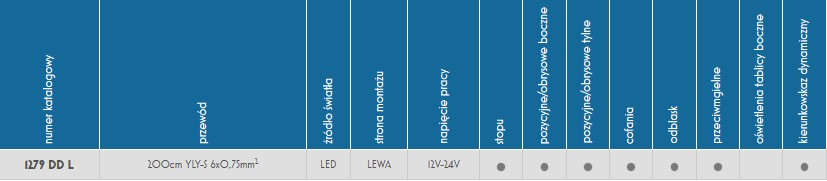

Power consumption at voltage:
- Lamp tail light: 1.3W (12V) or 2.5W (24V)
- Side position light: 0.3W (12V) or 0.6W (24V)
- Brake light: 1.3W (12V) or 1.3W (24V)
- Dynamic turn signal light (*DD): 10.6W (12V) or 10.6W (24V)
- Reverse light: 4.5W (12V) or 4.5W (24V)
- Fog light: 1.6W (12V) or 1.6W (24V)
- Bottom license plate light: 0.4W (12V) or 0.8W (24V)
- Side license plate light: 0.8W (12V) or 1.5W (24V)

Lamp weight: 1.3kg
IP rating: IP 66/68
Approvals: E20, R10, R23, R7, R6, R38, R3, R4, R91
