Rear Combination Lamps 1722 DD - Dynamic Turn Signal L/R

  • Obserwuj produkt:
  • Add feedback:
  • Code: 13165
  • Manufacturer: WAŚ
  • pcs.
  • Net Price: €63.77 €78.44
  • Fast Blik payments.

Rear Combination Lamps 1722 DD L/R


Power Consumption 12V 24V
Position light max. 5,5W
Stop light max. 6W
Turn signal light max. 21W
Reverse light max 8W
Fog light max. 5W
License plate light 0,8W 1,7W



Functions License plate illumination Stop light Mounting side W247DD
Cable Schlemmer TYCO WAS5 WAS7
3
T/S/I		 LPS variant 2 left 1722 DD L 1722 DD L SCHL 1722 DD L TYCO 1722 DD L WAS5 1722 DD L WAS7
right 1722 DD P 1722 DD P SCHL 1722 DD P TYCO 1722 DD P WAS5 1722 DD P WAS7



  type cable light source mounting side operating voltage stop position/side marker position/rear marker reverse reflector fog rear turn signal lower license plate illumination dynamic turn signal position lamp W44
1722 DD L W247DD 195cm LED Left 12V-24V + + + - + - + + + +
1722 DD P W247DD 195cm LED Right 12V-24V + + + - + - + + + +

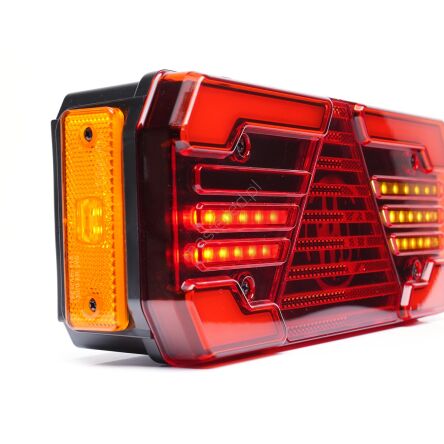

The new W247 series of LED rear combination lamps features an innovative design and distinctive appearance. The new shape of the position light makes the lamps recognizable and clearly visible on the road. The LED modules of the position light are made of a special material, thanks to which individual light points are not visible, but only a shape with a pleasant, neon-effect light glow.

The lamps are available in 3-, 4- and 5-function versions. The main distinguishing feature of these lamps is the red, three-dimensional outer lens. A novelty, unprecedented until now, is the ability to obtain white reverse light through a red lens. The entire surface of the lens is red, so we effortlessly achieved position light, fog light, and stop light, and the technology allowing us to obtain yellow turn signal light through a red lens has already been developed and used in our previous lamps. Therefore, the greatest innovation was indeed obtaining white light. An amazing effect is created by combining the red position light and yellow turn signal light in one area. W247 series lamps are available in versions with lower license plate illumination and without illumination. What's more, the red outer lens is specially sealed, mounted with 4 screws, which allows the user to replace it independently. The outer lens is replaceable, making it fully universal; regardless of the light configuration the customer chooses, it is a common element for all lamps. Each module located under the lens is hermetic; even if the outer lens is scratched, no internal element will be damaged, and no moisture or dust will get inside.

In the new W247 - W252 series of rear combination lamps, it is possible to order lamps with your own light motif under the reflector
- ask your sales representative for details.
